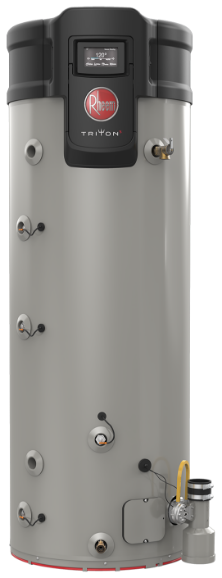

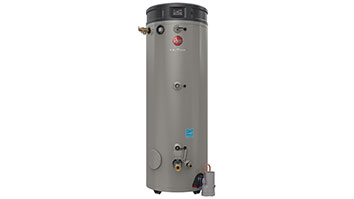

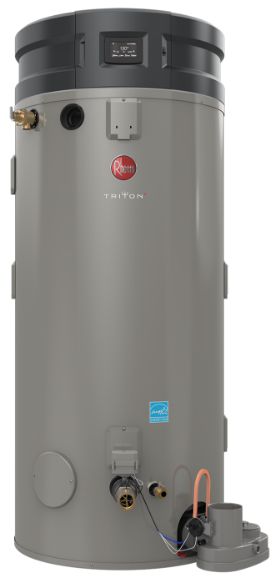

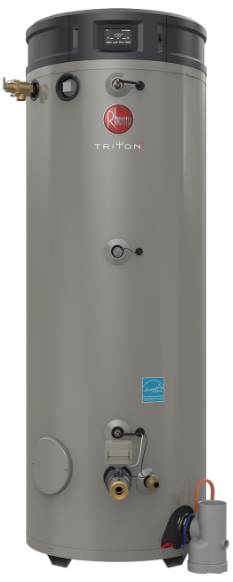

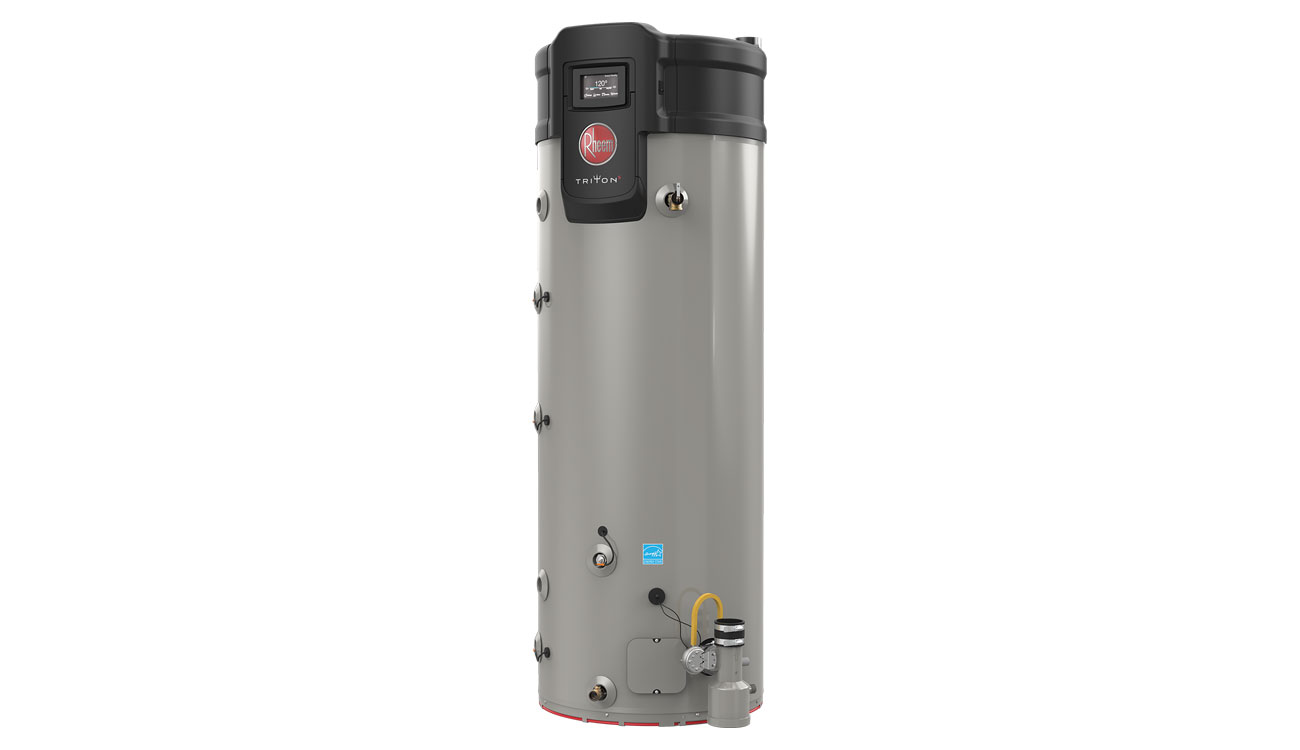

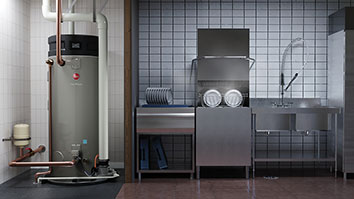

The new Rheem® Triton™ is the best water heater solution to spec for any application. With built-in smart monitoring technology and the industry’s most accurate leak detection and prevention system, commercial customers can now manage and prevent water heater problems before they occur.

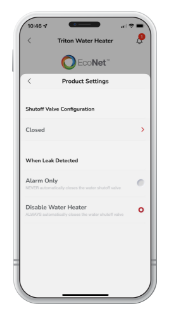

All-inclusive leak detection and prevention system with proprietary auto shut-off valve limits leakage to no more than 24 ounces of water

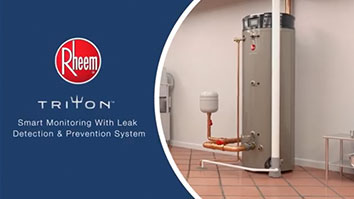

Intelligent leak detection system provides real-time notifications that prevent catastrophic failure

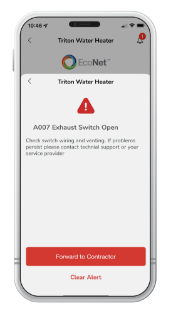

Exclusive technology provides performance updates and alerts via both mobile device and full-color LCD display
Built-in BACnet port easily connects to building management systems
Intelligent leak detection system provides real-time notifications that prevent catastrophic failure.
All-inclusive leak detection and prevention system with proprietary auto shut-off valve limits leakage to no more than 24 ounces of water.
Exclusive technology provides performance updates and alerts via both mobile device and full-color LCD display.
Ongoing self-monitoring of Triton’s most vital components detects and alerts of potential issues.
Built-in BACnet port easily connects to building management systems (BMS).

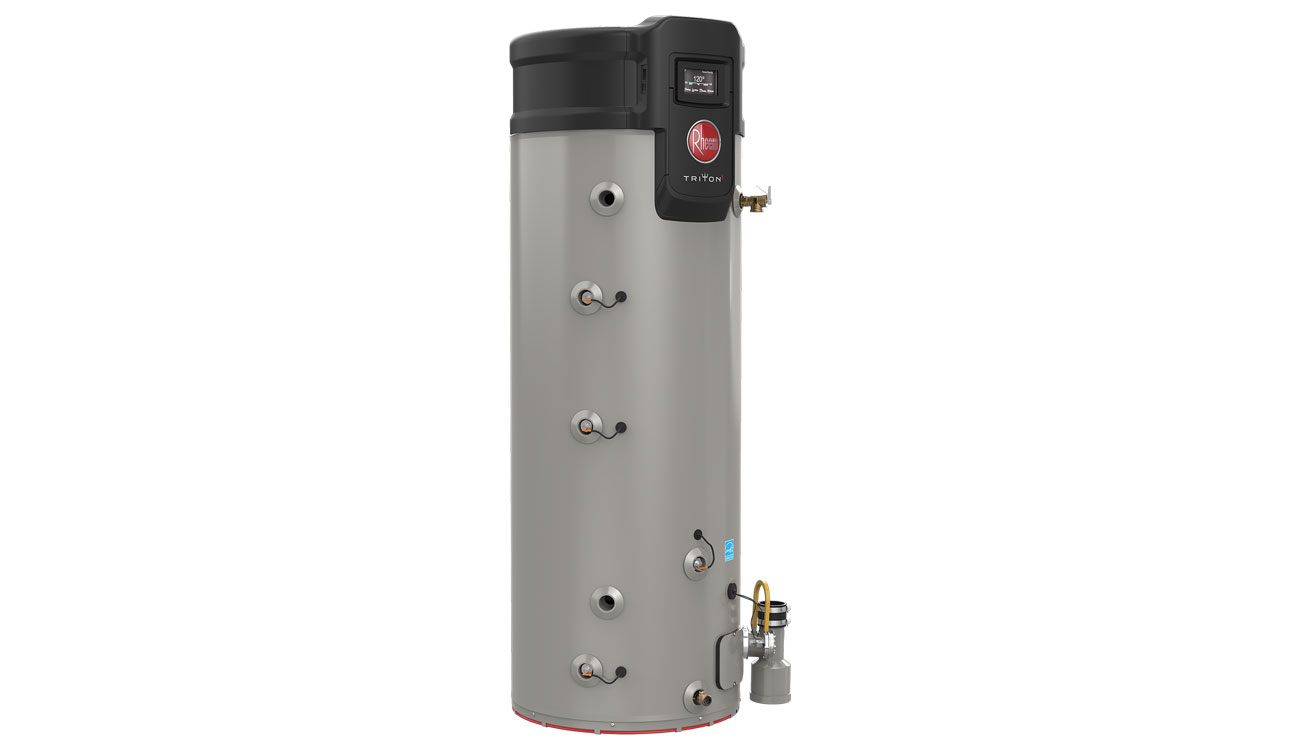

Multiple water connections at the top, side and bottom of the unit simplify installation.

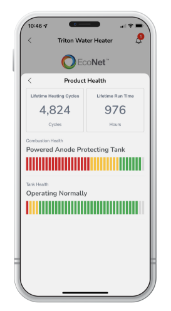

Self-adjusting, non-sacrificial power anodes provide systematic monitoring of anode health and remaining life on full-color LCD unit display.
Constructed with premium ASME-grade steel to minimize rust and corrosion for extended tank life and maximum thermal efficiency.
Ideal for replacement and new installs with a selection of the most flexible PVC venting choices, including Polypropylene, PVC, CPVC, InnoFlue and ABS materials; power direct and power vent configurations and 2-, 3-, 4- and 6-inch diameters.
Ongoing self-monitoring of Triton’s most vital components detects and alerts of potential issues
Preventive maintenance reminders to extend life of the tank
Replace any brand on the market with multiple water connection points and flexible venting options
Built-in condensate neutralizer reduces water acidity for safe drainage at no additional cost
Exclusive technology provides performance updates and alerts via both mobile device and full-color LCD display.
Maximizes energy savings by optimizing BTU/h input for specific water-heating demand

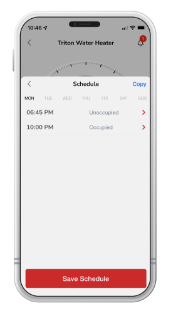

Adjusts to heat water only during peak operating hours
Track usage trends and manage energy and water consumption
Use the links below to learn more about the new Triton
| Specifications | Triton SU – Base | Triton SS – Premium | AO Smith | Bradford White |
|---|---|---|---|---|
| BTUs | 130K – 400K | 130K – 400K | 120K – 500K | 125K – 400K |
| Thermal Efficiency | 97% | 97% | 98% | 99.1% |
| Modulation | Full | Full | Modulation | None |
| Connections | Universal Retrofit | Universal Retrofit | Side, Top Water | Side Water |
| Venting | Flexible | Flexible | – | – |
| Condensate Neutralizer | Built-in | Built-in | Accessory | Accessory |
| Anodes | Power | Power | Power | Magnesium |
| BMS Integration | – | BACnet Port | Accessory | Accessory |
| Cross Reference: | GHE80SU-130(A) | GHE80SS-130(A) | BTH-120(A) | EF-60T-125E-3N(A) |
| GHE80SU-160(A) | GHE80SS-160(A) | – | EF-60T-150E-3N(A) | |
| GHE80SU-200(A) | GHE80SS-200(A) | – | EF-60T-199E-3N(A) | |
| GHE80SU-300(A) | GHE80SS-300(A) | – | – | |
| GHE100SU-130(A) | GHE100SS-130(A) | – | – | |
| GHE100SU-160(A) | GHE100SS-160(A) | BTH-150(A) | EF-100T-150E-3N(A) | |
| GHE100SU-200(A) | GHE100SS-200(A) | BTH-199(A) | EF-1000T-199E-3N(A) | |
| GHE100SU-250(A) | GHE100SS-250(A) | BTH-250(A) | EF-1000T-250E-3N(A) | |
| GHE100SU-300(A) | GHE100SS-300(A) | BTH-300(A) | EF-1000T-300E-3N(A) | |
| GHE100SU-400(A) | GHE100SS-400(A) | BTH-400(A) | EF-1000T-399E-3N(A) | |
| – | – | BTH-500(A) | – |
Triton makes it easy to transition from standard to high efficiency gas with Flex Venting.
