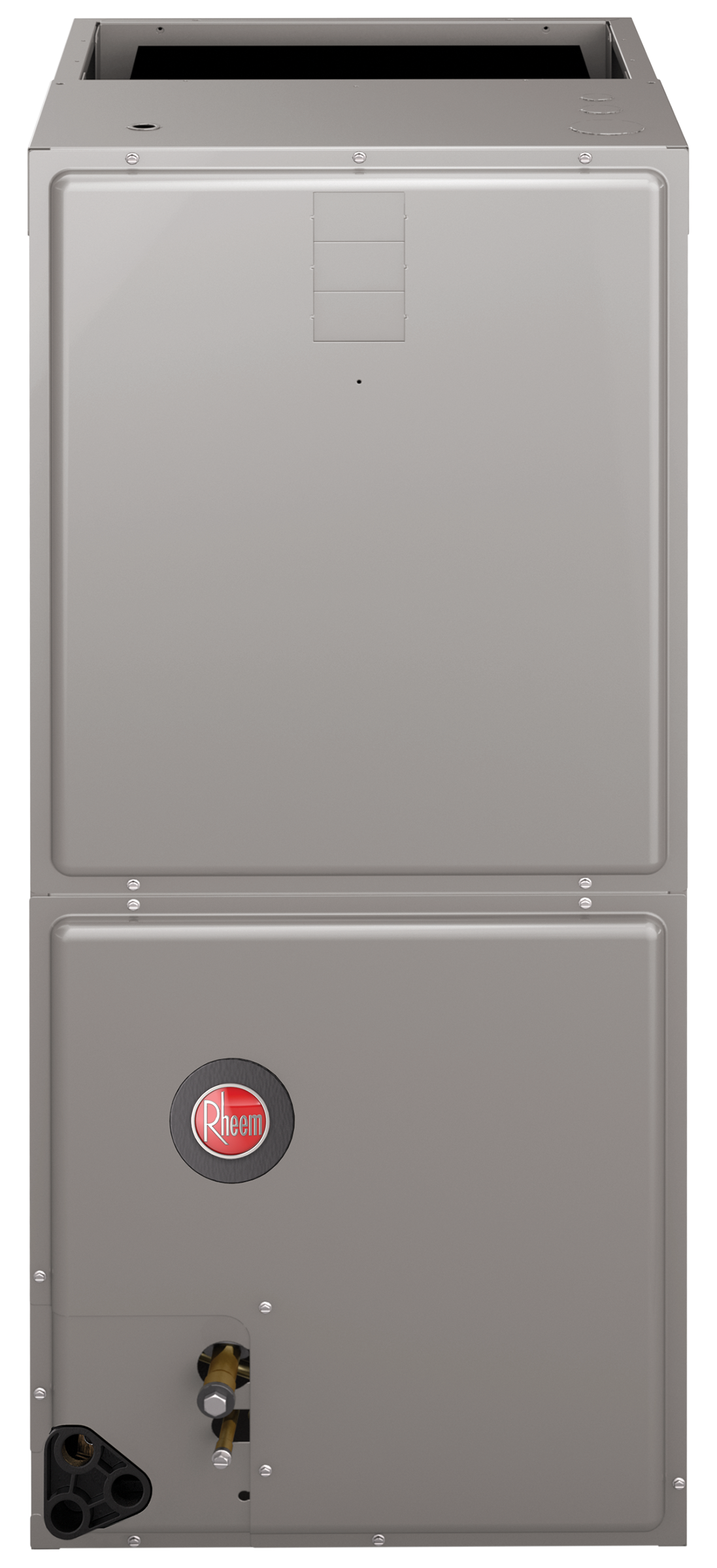

EcoNet™ Enabled High Efficiency Modulating with CFM Motor (RHMV)

The RHMV is EcoNet Enabled: This allows the RHMV to directly communicate with the EcoNet Smart Home System.
The RHMV features an Electronic Expansion Valve (EEV)
Features a constant CFM variable speed motor (ECM) which provides enhanced SEER performance. The RHMV is rated with RA17, RA20 air conditioners and RP17, RP20 heat pumps.
Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing.
Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
Factory-installed indoor coil.
Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics.
Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect.
11/2 ton [5.3 kW] through 5 ton [17.6 kW] models are between 421/2 to 57 inches [1080 to 1448 mm] tall and 22 inches [559 mm] deep.
All models meet or exceed 330 to 400 CFM [156 to 189 L/s] per ton at .3 inches [.7 kPa] of external static pressure.
Enhanced airflow up to .7" external static pressure.
Suitable for application in mobile homes.
